Quality, Affordability & Humor: China's Wholesale Aluminum-Plastic Composite Water Pipes for Maximum Profit
Welcome to our factory, where we blend high-quality products with a dash of humor to make your wholesale experience truly memorable. As a leading manufacturer and wholesale supplier of Aluminum-Plastic Composite Water Pipes in China, we focus on delivering unmatched durability and affordability, all while keeping the process enjoyable for our customers.
Durability Meets Affordability | Boost Profits & Have a Laugh
Zhongcai Aluminum-plastic Composite Pipeline

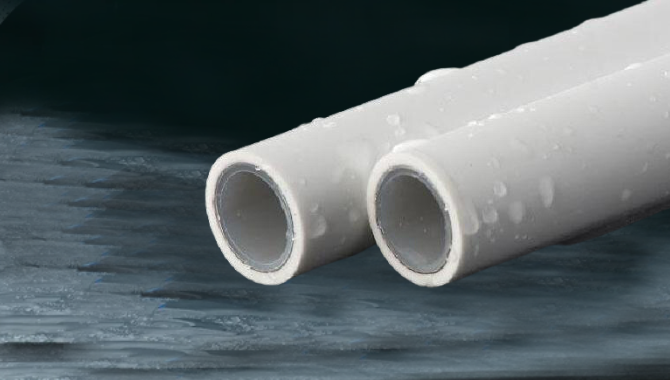

The PP-R aluminum plastic steady state composite pipe is a five-layer composite pipe. It is created by organically bonding a PP-R pipe and an aluminum layer with a specially made hot-melt adhesive at high temperatures. This forms a unique composite structure of polypropylene-hot melt adhesive-aluminum layer-hot melt adhesive-polypropylene. The inner and outer PP-R material guarantees the hygienic performance of the material in water supply applications. The inner layer of PP-R, which is close in size to regular PP-R pipe, is the main pressure-bearing body, while the middle aluminum layer provides reinforcement and protection. The organic combination of these five layers achieves stable physical and mechanical properties.
The Advantage of Aluminum-plastic Composite Pipeline
Energy-saving and thermal insulation, more economical. The thermal conductivity is 0.23-0.24 W/M.K, much smaller than steel pipes (43-52 W/M.K) and copper pipes (383 W/M.K), which makes it a good insulating material for customers;
The connection is firm, non-leaking, and easy to install. The PP-R plastic aluminum pipe still uses the same hot-melt socket connection method as the ordinary PP-R pipe.
It has a small linear expansion coefficient, and it does not deform at all when surface mounted. This is 1/5 of that of pure aluminum plastic pipes, close to metal pipes;
High-temperature operation does not allow oxygen to permeate, it is anti-corrosive. The alloy aluminum completely isolates the external air, ensuring safe, stable, and efficient system operation;
Zhongcai SW Direct Melting Steady Pipe-A Blend of Innovation and Performance

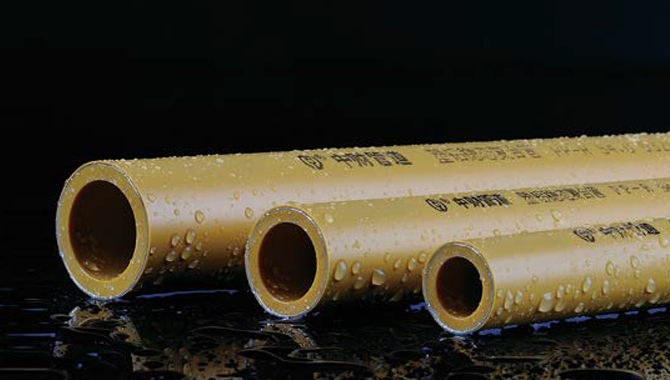

The Zhongcai SW Direct Melting Steady Pipe is a multi-layered composite pipe. It uses lap joint aluminum as the middle layer and the inner layer is constructed from PE-RT II type materials. The inner layer, which comes in direct contact with the fluid being transported, primarily protects the aluminum layer and also has some compressive properties. The outer layer, which is the pressure-bearing component, is made from PP-R.
Aluminum Composite Pipe Application
In the production process, a special hot-melt adhesive is used and integrated into the pipe material through extrusion molding. This approach endows the pipe with the key properties of plastic pipes, including corrosion resistance, ageing resistance, good fluid flow, and non-scaling attributes. Furthermore, it brings the advantages of plastic aluminum steady composite pipes, such as high pressure resistance, light-proofing, oxygen seepage prevention, and a low linear expansion coefficient.
Multilayer Pipe Specifications
● It does not need peeling, and can achieve the homogeneous hot melting joint with the reliable connection.
● Unique three- course pressure- bearing structure, and stronger compressive property
● Unique technology makes 100% bonding of the aluminum plastic juncture, to eradicate the occurrence of tripping out of the aluminum plastic juncture fundamentally.
● The inner layer adopts high quality PE-RT II for manufacturing, and the long-term high pressure resistance performance is superior.
● While welding, it is not easy to shrink the hole, and will not influence the flow of the media, to reduce the energy consumption of the system operation.
Zhongcai– Multilayer Pipe Provider in China
In China, the use of Aluminum Plastic Composite Pipes has increased significantly in recent years due to their durability, ease of installation, and versatility. They are commonly used in various applications such as hot and cold water supply, underfloor heating systems, gas pipelines, and more. Leading manufacturers like Zhongcai have been at the forefront of this industry, providing high-quality composite pipes that meet global standards.
More About Aluminum Plastic Composite Multilayer Pipe
Material: Made of PP-R and Aluminum.
Dimensions: Available in sizes ranging from 20mm to 110mm.
Pressure Tolerance: Suitable for 1.6MPa, 2.0MPa, and 2.5MPa pressure levels.
Standardized According to: CJ/T 210-2005.
Color Variations:Green: Universal；Blue Striped: Designated for cold waterRed Striped: Designated for hot water (Note: We offer custom colors based on your requirements.)
Packaging & Delivery: Straight lengths of 4 meters across all sizes/Coiled lengths of either 50 or 100 meters for sizes between dn20 and dn32./Custom lengths and forms can be arranged as per your needs.
- Endures High Temperatures: Can consistently operate at 70°C and can handle brief spikes up to 95°C.
- Insulates Heat: Has a thermal conductivity significantly lower than brass (1/1500) and steel (1/250).
- Safe & Clean: Free from heavy metal additives and resistant to bacterial contamination.
- Anti-Corrosion: Stands strong against chemicals and electrochemical wear.
- Efficient Flow: Designed with smooth interiors for minimal friction, ensuring rapid fluid transport..
- Cost-Efficient Installation: Its lightweight properties and simple installation techniques make it budget-friendly.
- Durable: Built to last over 50 years when used appropriately.
- Stable in Hot Conditions: Its low linear expansion coefficient ensures it remains straight even with prolonged hot water flow.
Plastic Composite Multilayer Pipelines for Your Business
PVC-U Pipelines have long been the trusted partner for countless plumbing projects worldwide. Known for their robustness, longevity, and resistance to corrosion, these pipelines ensure that water flows uninterrupted. Dive deep ito the world of PVC-U and discover a realm of reliability and peak performance.
When strength meets innovation, the result is the HDPE
Reinforced Hollow Wall Pipelines. Crafted to offer superior wall reinforcement while maintaining flexibility, these pipelines are ideal for those demanding projects that require an impeccable balance of resilience and adaptability.
Our Communication Pipelines are designed to facilitate uninterrupted and seamless data transmission. Crafted from top-grade materials, they offer durability, ensuring your communications remain crystal-clear, consistent, and reliable. Connect to the future with confidence.
