Zhongcai Architectural Drainage Solutions: Leading Building Innovations

Discover the future of architectural drainage with Zhongcai’s 3S Enhanced Vortex Single-Pipe System. A product of rigorous R&D, this novel drainage system marries special vortex structure SC series connectors with reinforced spiral pipes. The genius lies in the marriage of fluid dynamics, structural mechanics, and acoustics to maximize drainage efficiency and minimize noise. Besides its robust draining prowess, boasting up to 10L/S, it underscores a commitment to space-efficiency, sustainability, and eco-friendliness.

Traditional drainage systems beware – the Zhongcai 3S System revolutionizes with quadrupled drainage capacity. Not only is its sleek design lightweight and corrosion-resistant, but it also brings down costs by about 75%. Homeowners will relish the comfort it offers: a consistent barrier against harmful indoor gases, coupled with insect and odor prevention. Reap the rewards of this refined drainage solution, and step into a future of reduced expenses and heightened eco-consciousness.

One of the underestimated luxuries of modern homes? Peace. The Zhongcai 3S System guarantees just that. Reducing the cacophony between water, air, and pipe walls, it ensures noise levels drop below a whisper-quiet 47db. Beyond the hush, the design is an ode to space-saving. By optimizing air and water discharge in the same pipe, each shaft liberates 0.15-0.27 square meters of space. Elegant, efficient, and incredibly silent – welcome home to tranquility.

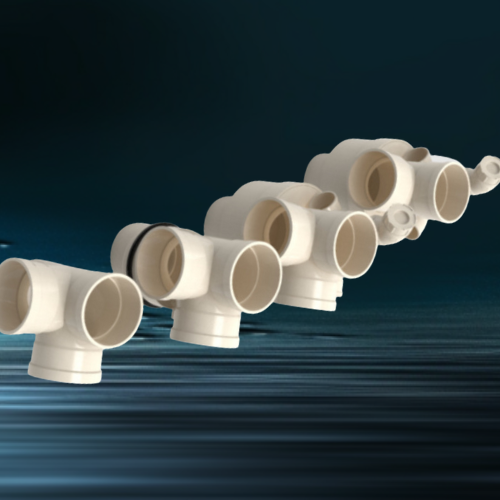

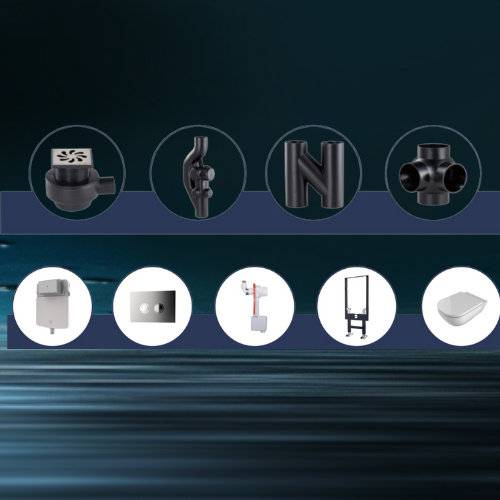

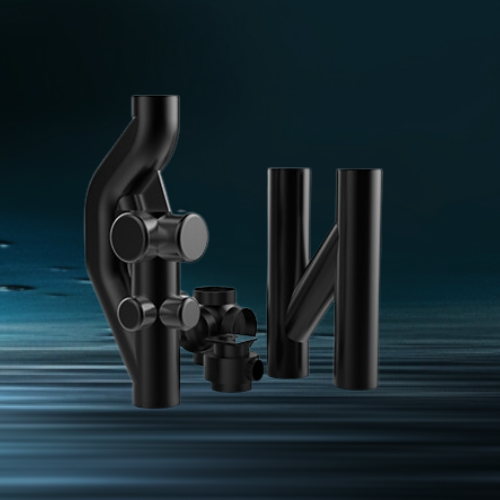

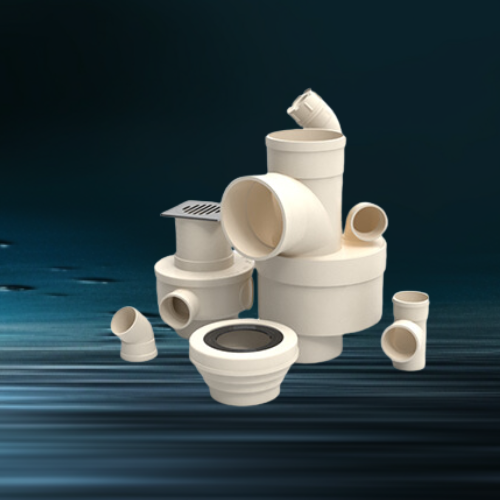

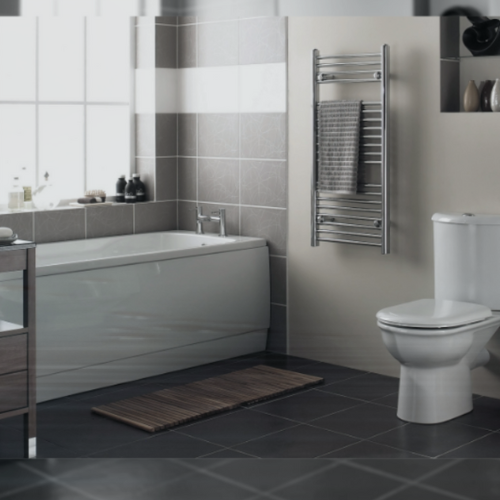

Zhongcai’s innovative Same-Floor Drainage technology to enable you say goodbye to the intrusive cross-floor plumbing, and enjoy the luxury of in-floor drainage that promotes hassle-free repairs without disturbing neighbors below. Beyond the convenience, it’s a silent system, ensuring reduced noise pollution. Plus, unleash your bathroom’s potential with flexible layouts tailored to individual preferences. With the rising adoption of this technique, our PVC-U CTS Same-Floor Drainage, available in Convergent (Type I) and Confluent (Type II), stands out by offering optimal absorption and discharge for both residential and commercial spaces.

Dive into a world where lower floor drop heights and odor-free environments become the standard. Zhongcai’s system leverages a unique structural design, minimizing floor drop heights to just 180-220mm compared to the typical 250-400mm. Our multi-channel floor drains not only meet national standards but also ensure an ample water reserve, seamlessly refilling and preventing odor leakage. And with the secondary drainage feature integrated into the main collector, any seepage water is easily channeled away. Construction made simple: our collectors allow multi-angle rotations, ensuring easy pipe layout.

Embrace a system meticulously crafted for various applications. The Convergent (CTS-I) model, centered on the same-floor converger, allows a multitude of application methods, from total to partial floor drops and faux-wall installations. On the other hand, the Confluent (CTS-II) type, with its core being the main collector, integrates multi-channel drains for efficient seepage absorption and discharge. Ideal for waste segregation or convergence, it stands as the epitome of low drop heights and flexible installations. Choose Zhongcai, where innovation meets adaptability.

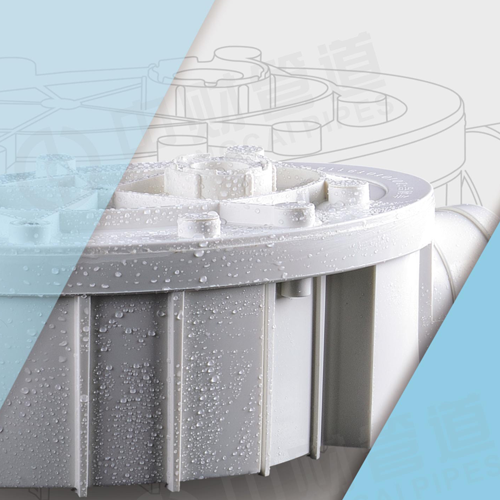

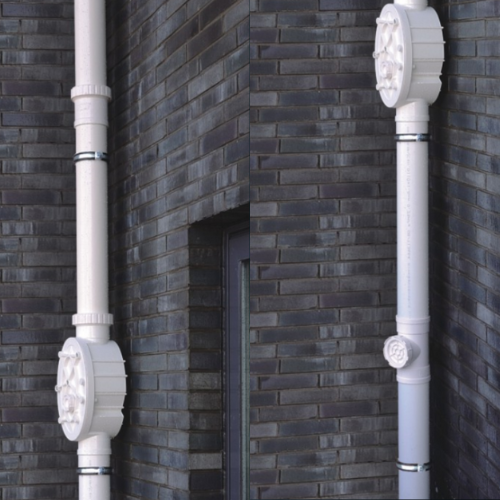

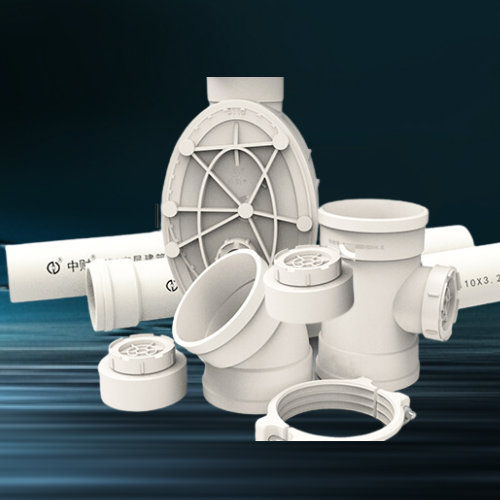

With the urban shift to high-rise residences and the imperative of efficient rainwater drainage, Zhongcai brings a solution that eclipses conventional systems. Unlike the market’s standard high-rise rainwater drainage systems that often use cast iron or plastic pipes, resulting in issues like leakage, brittleness, and space occupancy, Zhongcai’s HRS drainage system, developed from modified PVC resin after numerous tests, addresses the pressing demands of buildings up to 100 meters. Efficient, compact, and designed to conserve space, our integrated energy dissipator trumps traditional devices, reducing noise and ensuring hassle-free installation.

What sets the HRS high-rise rainwater system apart? For starters, its modified PVC resin base material boasts an impact resistance twice that of ordinary PVC pipes. Coupled with a double-sealed structure, it also ensures pressure lining and facilitates easy cleaning and maintenance. Fluid mechanics have inspired its unique large-radius buffer structure, maximizing drainage while minimizing shock risks. UV inhibitors have been thoughtfully integrated, protecting against UV penetration and ensuring longevity. Even more, the aesthetic design complements modern high-rise architecture, syncing form with function.

The detailing in Zhongcai’s HRS system goes beyond mere function; it’s about precision and innovation. Traditional pipe connections falter under pressure and shock. Enter Zhongcai’s adhesive connections. Our specialty adhesive ensures surfaces meld into a seamless bond, elevating sealing strength exponentially. This adhesive sealing, tailored for areas demanding high impact resistance and pressure endurance, exemplifies a seismic shift in plastic pipe sealing, marrying flexibility with scientific precision. With Zhongcai, experience a seamless blend of durability, design, and ingenious sealing for high-rise drainage solutions.

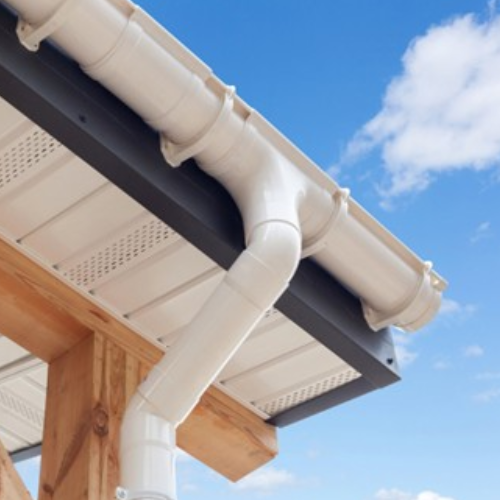

Roof rainwater, through the anti-vortex siphon rainwater funnel, achieves a harmonious and balanced roof rainwater drainage system, only when water depth surpasses design criteria. Traditional gravity-fed systems face numerous challenges:

• Limited adaptability for unconventional roofs.
• Small water flow per unit of time.
• Complex installation with substantial space needs for vertical pipes.
• Massive excavation during construction.
• Cumbersome installation processes. However, the siphon roof drainage system offers a refreshing take: enhanced adaptability, greater water flow, lesser construction needs, and a life expectancy of up to 50 years

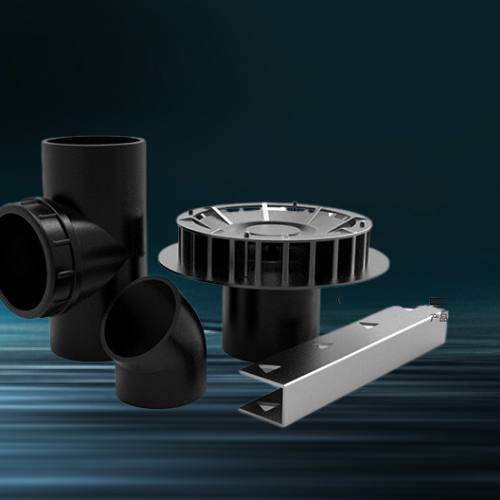

Distinguishing itself from conventional systems, the Zhongcai siphon rainwater funnel stands out:

• Expertly crafted with patented design; ensuring aesthetics, high mechanical strength, and extended lifespan.
• Superior drainage capacity, stable flow, and excellent gas-water separation.
• Top-tier anti-corrosion properties eliminate the need for additional treatments during installation.
• Convenient and less intrusive roof preparations. When considering the intricacies of drainage, Zhongcai provides a blend of functional and aesthetic superiority, ensuring reliable,cost-effective and efficient drainage solutions.

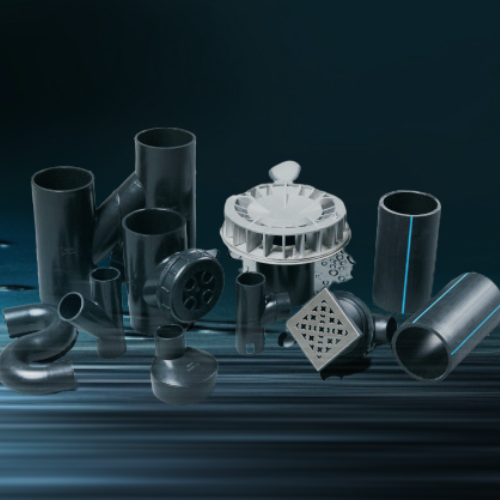

Adhering to stringent standards, Zhongcai’s PE components for siphon drainage follow the CJ/T250—2007 specifications for high-density polyethylene (HDPE) pipes and fittings in architectural drainage. These components:

• Withstand substantial pressure, both negative (not less than 0.08Mpa) and positive (up to 0.6Mpa).
• Employ specialized hot melt or electrofusion welding for siphon-specific connections, ensuring safety and reliability.
• Undergo rigorous hydraulics testing to guarantee performance. In a domain that demands precision and durability, Zhongcai continues to set industry benchmarks with its siphon drainage solutions.

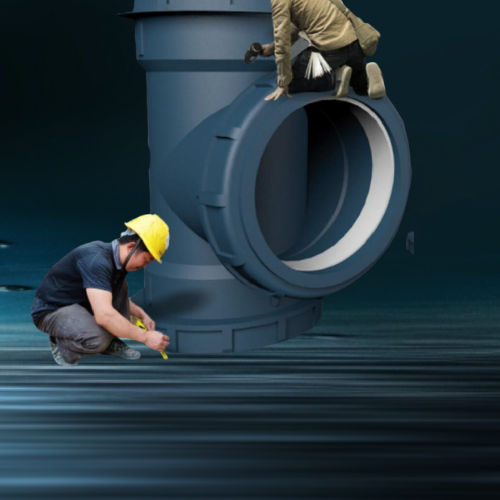

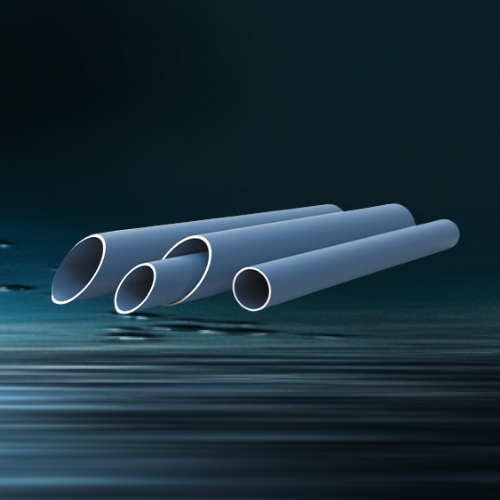

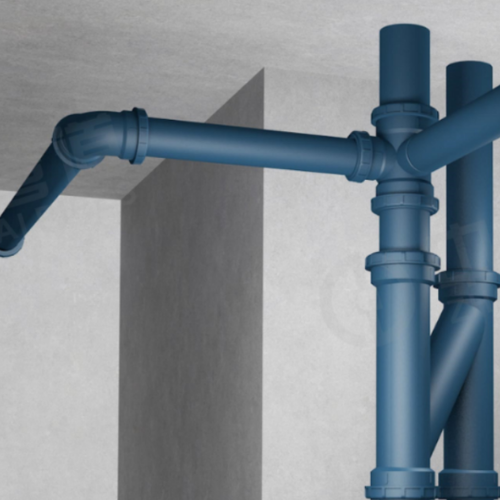

In the age of peaceful living and noise-free environments, Zhongcai steps up, introducing its revolutionary PP Ultra-Quiet Pipeline System.Crafted meticulously using a 3-layer co-extrusion process, the pipes showcase a blend of recyclable polypropylene resin for its smooth interior and exterior, enhancing chemical resistance, heat endurance, and unparalleled impact resistance. The brilliance lies in its middle layer—a cocktail of inorganic mineral fillers, PP, and thermoplastic elastomers. By adding special materials to adjust the density of the pipe and optimize the microstructure, it can block and absorb sound waves and achieve a quiet effect.

Reach out for more information!

Beyond its noise-dampening capabilities, Zhongcai’s PP Ultra-Quiet Pipes flaunt a plethora of advantages:

Density and Micro-structure: Specialized materials finely tune the density and structure, absorbing sound waves and delivering a silent drainage experience.

Impact and Temperature Resistance: Superior materials confer high impact resistance and the ability to consistently manage hot water of up to 75°C and short bursts of 95°C.

Seismic Resilience and Flexibility: The pipes  employ socket connections, ensuring robust seismic performance. This flexibility also translates into ease of assembly and significant cost savings in installation.

Every layer in Zhongcai’s pipe system is a testament to engineering brilliance:

Inner Layer: Smooth PP ensures efficient drainage and resistance to contamination, paired with exemplary heat and corrosion resistance.

Outer Layer: Its toughness guarantees exceptional impact resistance.

Core Layer: Modified viscoelastic materials are used, providing shock absorption, sound insulation, and adding to the pipe’s overall rigidity. Furthermore, these pipes can handle liquids with a pH range from 2 to 12, showcasing their chemical corrosion resistance. Zhongcai’s commitment to excellence manifests in every inch of its Ultra-Quiet Pipeline, setting new industry benchmarks.
